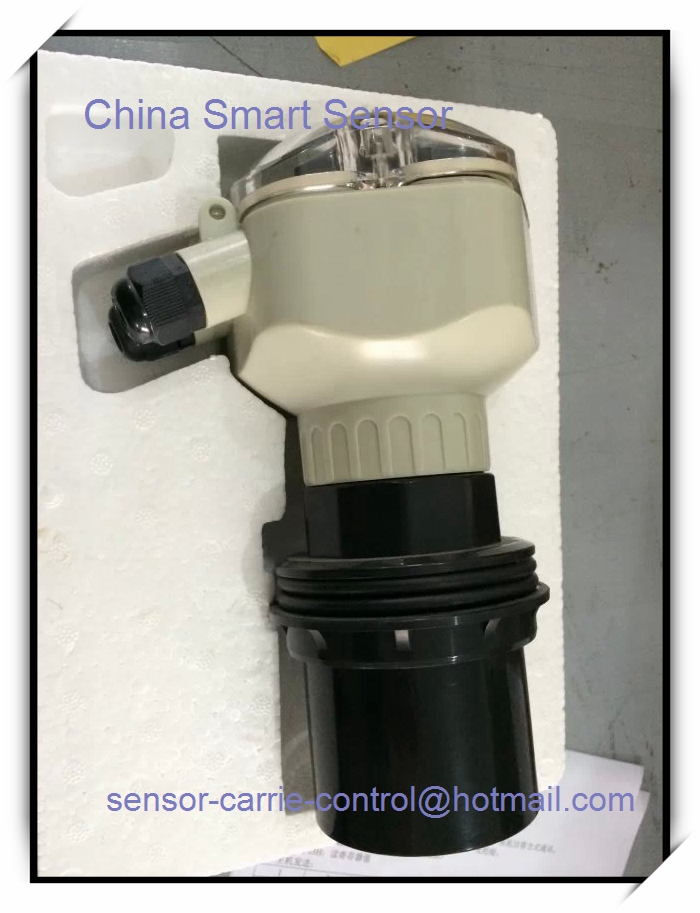

Ultrasonic Water Level Meter For Gaging Station
Introduction
Ultrasonic level meter is microprocessor controlled digital level meter. Ultrasonic pulses generated by the sensor (transducer) emitted in the measurement, the surface acoustic wave after reflection by the liquid receiving same sensor or an ultrasonic receiver, by a piezoelectric crystal or a magnetostrictive device into an electrical signal by transmitting and receiving sound waves to calculate the time between the sensor surface to the distance measured liquid. As a result of non-contact measurement, measured media is almost unlimited, can be used to measure the height of a variety of liquid and solid materials. It is widely used in open pipe, oil tank, pump station, water tower, dam, open channel, difference between levels etc.
Feature
1. Has a strong anti-interference. Upper and lower limits can be set to adjust the output node and
online, and with on-site display, select the analog, digital and RS485 output for easy interface
with related facilities.
2.Case is quite compact and rugged, with excellent chemical resistance, for inorganic
compounds,regardless of acid, alkali, salt solutions, in addition to strong oxidizing materials,
almost all of its non-destructive effect on almost all solvents at room temperature are insoluble,
general dioxane, hydrocarbons, alcohols, phenols, aldehydes, ketones and other media can be
used.
3. Light weight, no scaling, do not pollute the media
4. Non-toxic. Can be used in medicine, food industry equipment installation, maintenance is very
easy

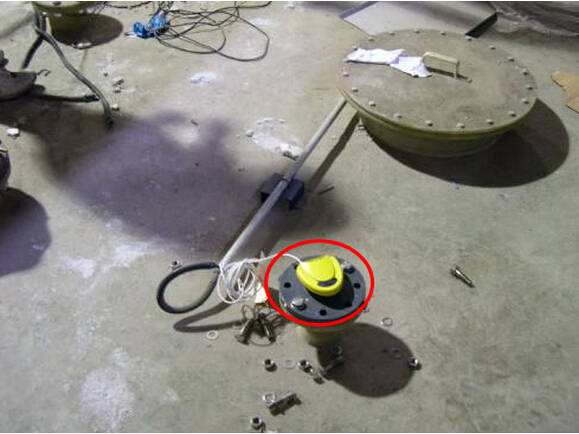

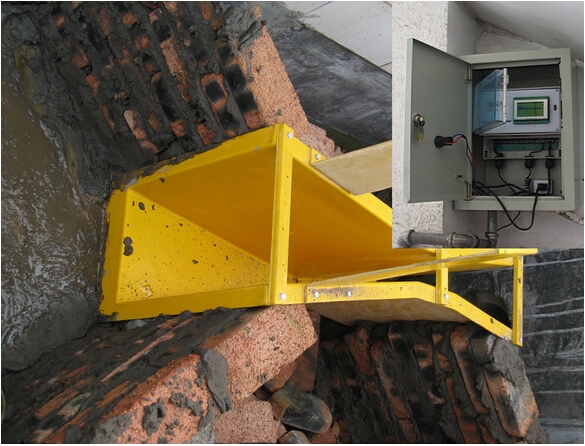

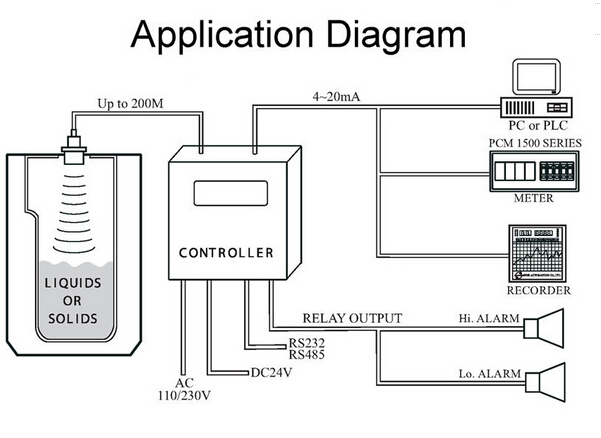

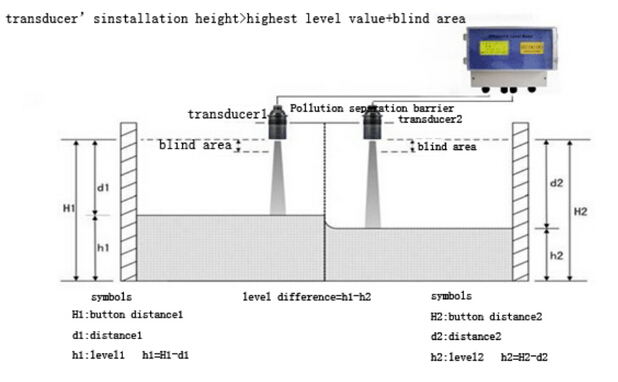

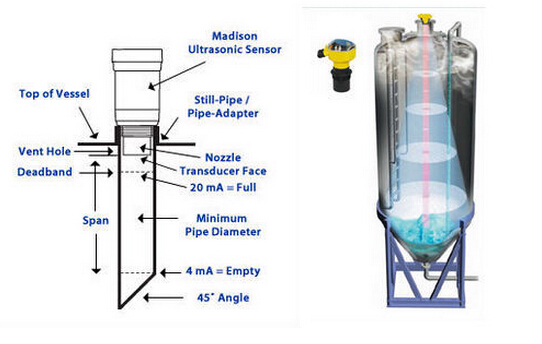

Installation diagram
Main Technical Specifications
|
function
|
Integral type
|
fission style
|
|
Measurement
range
|
5m,10m,15m,20m,
30m,40m,50m,60m
|
5m,10m,15m,20m,30m,40m,
50m,60m,70m,
|
|
Measurement
accuracy
|
0.25%-0.5%
|
0.25%-0.5%
|
|
resolution
|
3mm or 0.1%(take great)
|
3mm or 0.1%(take great)
|
|
display
|
Chinese LCD
|
Chinese LCD
|
|
Analog output
|
4wires4~20mA/750Ω load
2wires4~20mA/250Ω load
|
4~20mA/750Ω load
|
|
Relay output
|
2groups AC 250V/ 8A or DC 30V/ 5A
state programmable(optional)
|
Single channel for two groups, double
channels for four groups AC 250V/ 8A
or DC 30V/ 5A state programmable
( optional )
|
|
Power supply
|
Standard configuration 24VDC
optional 220V AC+15% 50Hz
|
Standard configuration 220V AC+15%
50Hz
optional 24VDC 120mA
custom 12VDC or power supply
|
|
Environment
temperature
|
Display instrument-20~+60℃,
transducer-20~+80℃
|
Display instrument -20~+60℃,
transducer-20~+80℃
|
|
communication
|
Optional 485,232 communication
( Manufacturer agreement)
|
Optional 485,232 communication
( Manufacturer agreement )
|
|
Protection
grade
|
Display instrument IP65,
transducer IP68
|
Display instrument IP65,
transducer IP68
|
|
transducer
cable
|
no
|
Up to 100 m, Standard configuration 10m
|
|
Transducer
installation
|
According to the range and
transducer select
|
According to the range and transducer
select
|
Note: This series of ultrasonic transducer can also customize according to the customer demands: special specifications of transducer such as high voltage, high temperature resistant,minor-caliber, small blind area and so on.

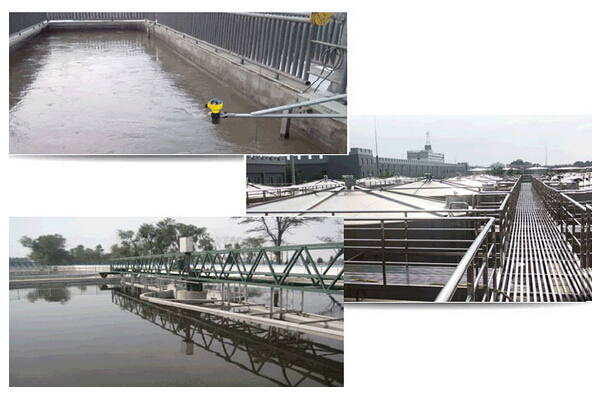

Applications
Measuring media: water , sewage , cement, acid and alkali liquid , coal , mud, heavy oil , etc.
Ordering Guide
1. Measuring media?
2. Media’s temperature and pressure?
3. Is your measuring media corrosive?
4. Need ex-proof , anti-corrosive?
5. Measurement range?
6. Working environment/condition?
7. Working voltage: 24VDC is standard ; 220VAC is optional ;12VDC/9VDC can be customized
8.Signal output: 4～20mA or RS485 or RS232?
9: Connection method?
