CSS-15 Series Pressure Transmitter
Description
CSS15 series are especially for air compressor. The cost-performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of damp-proof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.
Features
Wide measurement range Marking :ExiaIICT6
Multiple thread CE,CMC certification
Protection: IP65
Application
air compressor, vacuum equipment,
oil pressure equipment
Specification
|
Measurement Range
|
0~0.1．．．~5MPa
|
|
Proof pressure
|
≤1.5X rated pressure
|
|
Pressure type
|
Gauge, absolute ,sealed gauge
|
|
Accuracy
|
±0.25%（typical） ±0.5%（Max.）
|
|
Long stability
|
±0.1%F.S/year（typical） ±0.2%F.S/year（Max.）
|
|
Temperature Error- Zero
|
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
|
|
Temperature Error -Span
|
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
|
|
Operating Temperature Range
|
-20℃~80℃
|
|
Storage Temperature Range
|
-40℃~120℃
|
|
Power supply
|
12～36VDC、5VDC
|
|
Output signal
|
4～20mA 0.5～4.5VDC,1～5V
|
|
Pressure port
|
M20×1.5,G1/4 or customize
|
|
Housing material
|
1Cr18Ni9Ti stainless steel
|
|
Diaphragm material
|
316L
|
|
O-ring
|
Fluororubber
|
|
Cable
|
Polyethylene
|
|
Insulation resistance
|
100MΩ,100VDC
|

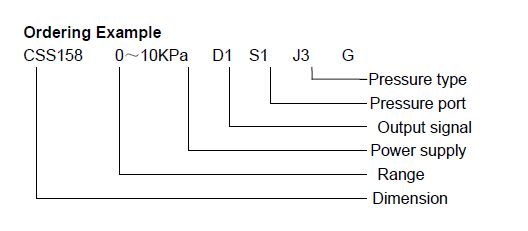

Ordering Information
|
CSS15
|
Pressure Transmitter
|
|
|
Code
|
|
|
5
|
Packard
|
|
6
|
Cable with 1.5 meter
|
|
7
|
Mini DIN
|
|
8
|
Big Din
|
|
|
Pressure range
|
-0.1. . .0～0.01．．．20MPa
|
|
(0-X)KPa or MPa
|
X: measurement range
|
|
|
Code
|
Output signal
|
|
S1
|
4～20mADC
|
|
S2
|
1～5VDC
|
|
S3
|
0～5VDC
|
|
S4
|
0～10mAC
|
|
S5
|
0～20mAC
|
|
S6
|
0～10VDC
|
|
|
Code
|
Pressure port
|
|
J1
|
M20X1.5 male
|
|
J2
|
G1/4 male
|
|
J3
|
1/4NPT male
|
|
J4
|
7/16-20UNF(with thimble)
|
|
J5
|
Others
|
|
|
Code
|
Pressure type
|
|
G
|
Gauge pressure
|
|
A
|
Absolute pressure
|
|
S
|
Sealed pressure
|
