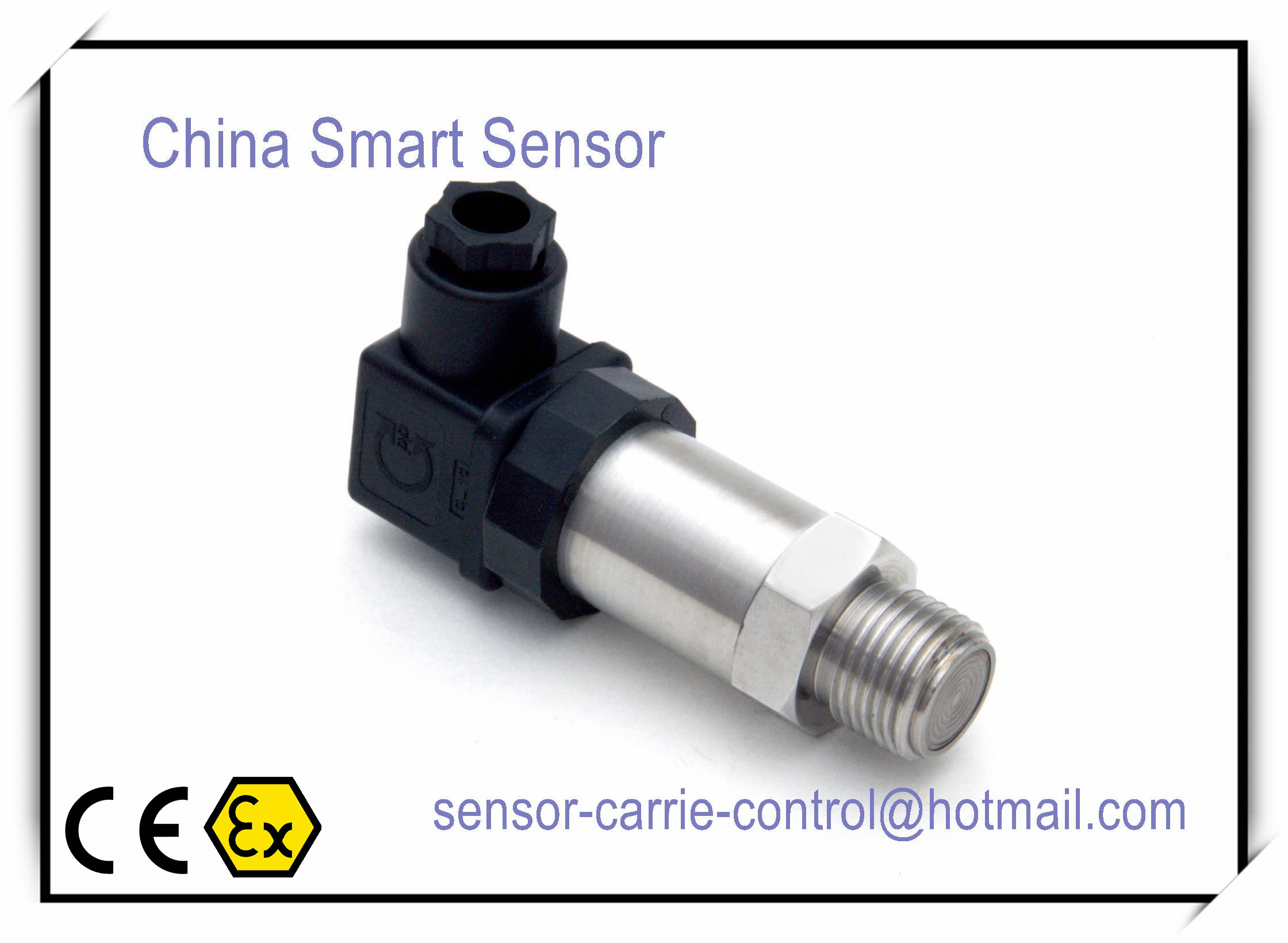

CSS-24 Pressure Transmitter



   Description

CSS24 pressure transmitter uses CSS series piezoresistive silicon oil-filled sensor which have flush diaphragm as sensing element. Output signal transferred to standard output signal via integrated amplify circuit. Mainly apply in the fields those require high sanitary conditions.

Feature

Wide range, full stainless steel,Flush diaphragm.

Various output signal

Scene adjustable

Protection: IP65

Marking:ExiaIICT6

CE certification

Application

Compatible with 316LSS,noncorrosive gases & liquids

Apply in fields of medical treatment, biological products, food sanitation.

Specification

Measurement Range

0~35KPa...~20MPa

Proof pressure

≤1.5X rated pressure or 110MPa which ever is less

Pressure type

Gauge, absolute ,sealed gauge

Accuracy

±0.25%(Typical) ±0.5%(Max.)

Long term stability

±0.1%F.S/year(Typical)      ±0.2%F.S/year(Max.)

Temperature Error- Zero

±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)

Temperature Error -Span

±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)

Operating Temperature Range

-20℃~80℃

Storage Temperature Range

-40℃~120℃

Power supply

15~28VDC

Output signal

4~20mA    0~10/20mA   0/1~5VDC

Pressure port

M20×1.5 G1/2

Housing material

1Cr18Ni9Ti stainless steel

Diaphragm material

316L

O-ring

Fluororubber

Cable

Polyethylene

Insulation resistance

100MΩ 100VDC

Protection

IP65
