Glass Lights Mirror Touch Switch Specially Design For Lights On The Mirror Electrical Appliance Touch Switch

Glass Lights Mirror Touch Switch Specially Design For Lights On The Mirror Electrical Appliance Touch Switch

IMPORTANT NOTICE BEFORE YOU ORDER: For the WS08 touch controller, there are four colours for it, which is

1: Blue,

2: White,

3: Blue-red,

4: White-blue,

pls let us know which color you prefer when you order, thanks..

The default sending color is blue if you do not remark in your order, thank you for the understanding=)

Product Description

WS08 series Mirror Surface Touch Switch is specially designed for bathroom intelligent lights or mirrors, this product is with reliable performance, easy installation, high sensitivity, big output power features which is suitable for different kinds of mirror, lights and other electronic appliance control…

WS08 is a product which use DC5-12V power touch control button to control the DC5~12V output by touching control, maximum current is 3A, with these parameters to realize LED light, light pipe and different kinds of high voltage electrical appliance switch control function.

On the touch switch, there's backlight, the backlight and the touch switch is a integral, When the power and switch connected, power's on, the backlight in the switch is light, When the backlight is long on, you can turn off the backlight by pressing/touching the button.

The diameter of the touch point 9~22mm, first you need to destroy mercury, the width of the destroyed mercury is better to be 1mm or above 1mm, the transparent part in the detroyed mercury there is backlight, you can find the touch button easily and it's also beautiful and convenient to find.

Installation method: Use 3M glue to paste or glass cement to fix it…

Application

Suitable For the media(like glass, acrylic, Plastic, ceramics)different kinds of lights and Lamps.

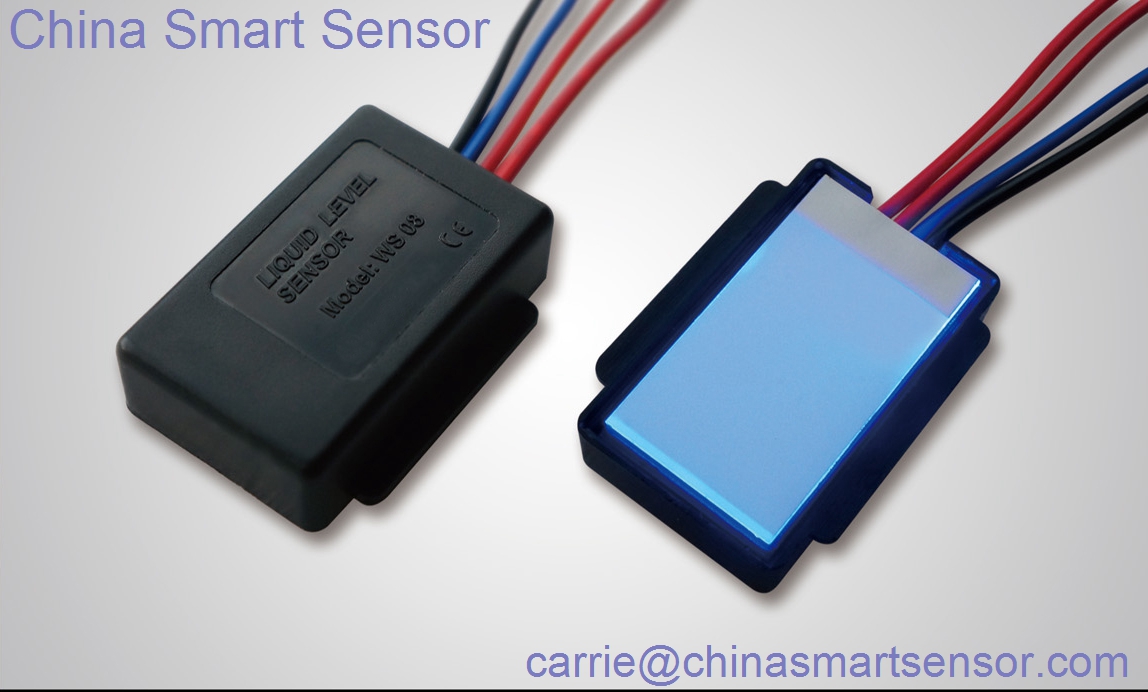

Product Display

Wiring Diagram
