RS485 Digital Output Pressure Transmitter With Display from China Smart Sensor Co.,Ltd.

RS485 Digital Output Pressure Transmitter With Display from China Smart Sensor Co.,Ltd.

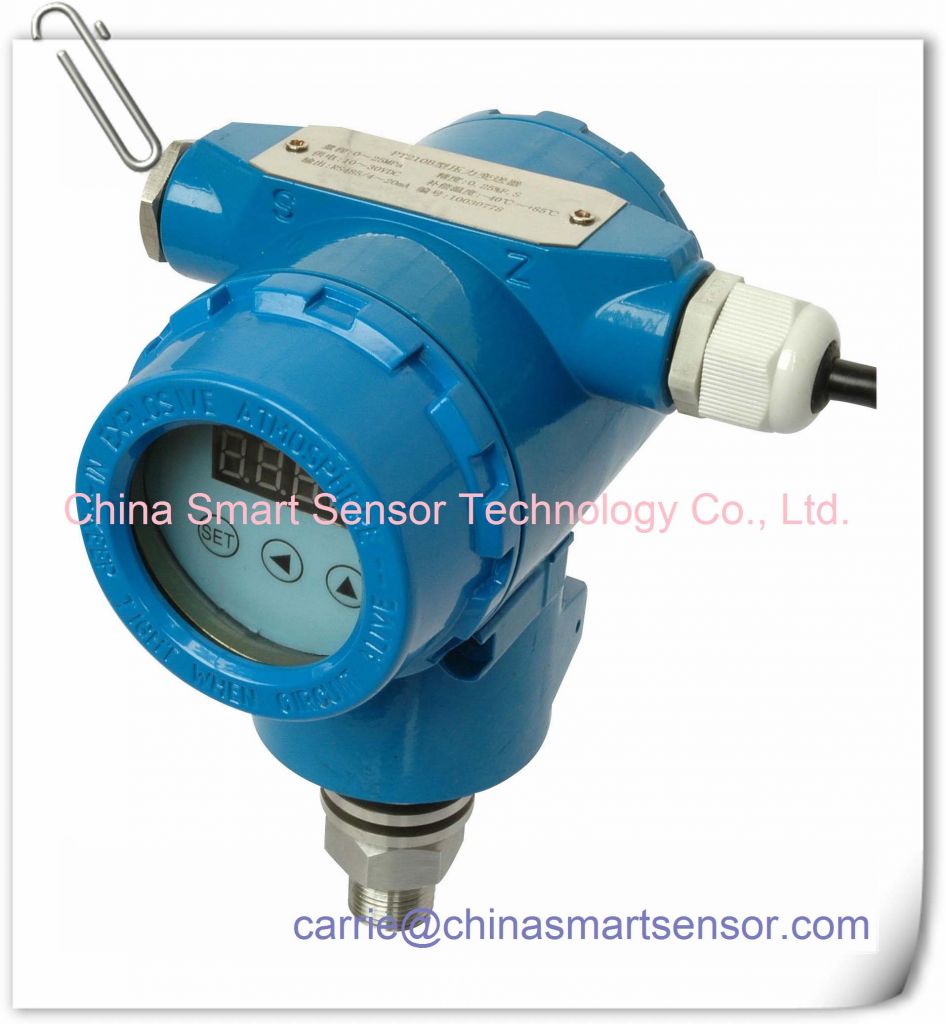

RS485 Digital Output Pressure Transmitter With Display

Features

1: With LED display

2: RS485 digital output

4: Temperature compensation

5: Full temperature range accuracy 0.25%

6: Support internet control and on-site setup.

7: Digital and current dual output can be customized

Application

1: Hydrology test

2: Geological survey

3: Petroleum

4: Chemi-industry

5: Mining machine

Technical Data

Value

Remark

PT210A

PT210B

1MPa≈145PSI

Pressure range

0~0.2MPa...100MPa

Power supply

10~30VDC

Digital output

RS485

Static current

<15mA

Accuracy

0.25%F.S

Electric features

three wire

Anolog signal output

None

4~20mA

Display

LED

LED

Stability

0.2%F.S/year

Pressure form

Gauge G, Absolute A

Compensated temperature

-25~85°C

Working temperature

-40~85°C

Overload ability

150%

Pressure connection

M20x1.5,G1/4,G1/2,NPT1/2

Drawing
